Below is a list of Hanwha Techwin cameras supported with the plug and play solution.
If your camera is not in this list, please contact us. Please note that most Hanwha Techwin will also work with port forwarding.
**Important** - If adding the Plug & Play cameras with the web methodology, make sure you have the latest firmware for your camera and the correct SDK file (listed below).
Finding the correct SDK file

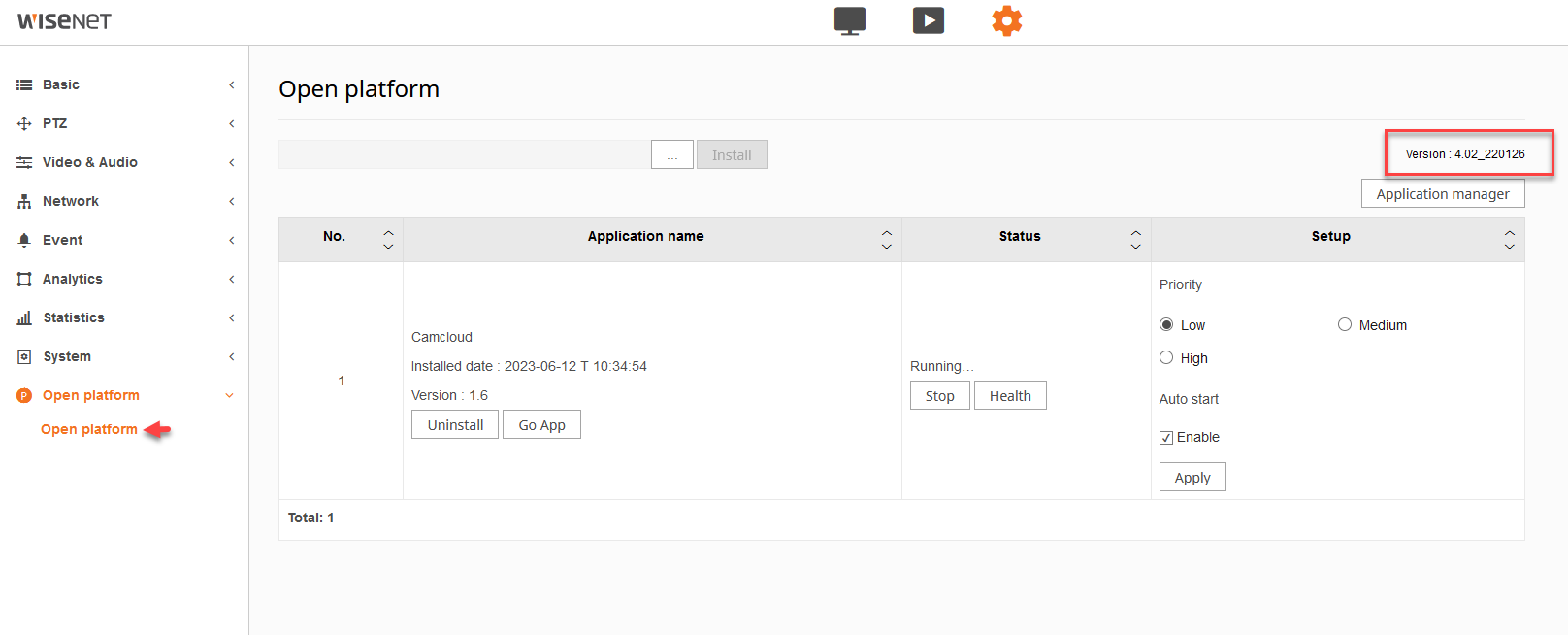

First you will need to confirm your open platform version, **NOTE** you should be upgraded to the latest firmware of the camera prior to checking this step:
Next, retrieve the file from below corresponding to your version (if you don't see your version below please contact partnersupport@camcloud.com)
|
Open Platform Version |
Cap File |
|
5.00_230407 |
|
|
5.00_230407 - Fisheye only |
|
|
4.01_210517 |
|
|
4.02_220126, 3.52(FW 1.4x) |
|
|
4.02_220126, 3.52(FW 1.4x) - Fisheye only |
|
|
3.6 |
|
|
4.01_210514 |
Plug & Play Integration
The following models are supported using our Plug & Play Method:
X-Series |
| XNZ-L6320 |
| XNV-L6080/L6080R |
| XNV-C9083R |
| XNV-9083RZ |
| XNV-9082R |
| XNV-8083RZ |
| XNV-8083R, XNV-8093R |
| XNV-8082R |
| XNV-8081Z |
| XNV-8081R |
| XNV-8080RSA |
| XNV-8080RS |
| XNV-8080R/8080RS |
| XNV-8020R/8030R/8040R |
| XNV-6123R |
| XNV-6120R/6120RS |
| XNV-6120 |
| XNV-6085 |
| XNV-6083RZ |
| XNV-6081Z |
| XNV-6081RE/8081RE |
| XNV-6081/6081R |
| XNV-6080RSA |
| XNV-6080RS |
| XNV-6080/6080R |
| XNV-6022R/6022RM |
| XNV-6020R |
| XNV-6013M |
| XNV-6012/6012M |
| XNV-6011 |
| XNV-6010 |
| XNP-9300RW |
| XNP-9250, XNP-9250R |
| XNP-8300RW |
| XNP-6550RH |
| XNP-6400RW |
| XNP-6371RH |
| XNP-6321/6321H |
| XNP-6320RH |
| XNP-6320HS |
| XNP-6320/6320H/6320HS |
| XNP-6250RH |
| XNP-6120H |
| XNP-6040H |
| XNO-L6120R |
| XNO-L6085R |
| XNO-L6080RA/KME |
| XNO-L6080R |
| XNO-L6020R |
| XNO-9082R |
| XNO-8083R |
| XNO-8082R |
| XNO-8080R |
| XNO-8020R/8030R/8040R |
| XNO-6320RHP |
| XNO-6123R |
| XNO-6120R |
| XNO-6120R |
| XNO-6085RA |
| XNO-6085R |
| XNO-6085 |
| XNO-6083R |
| XNO-6080R |
| XNO-6010R/6020R/6080RS |
| XNF-9013RV |
| XNF-9010RV |
| XNF-9010RV |
| XNF-8010R/8010RV/8010RVM |
| XND-L6080R/L6080V/L6080RV |
| XND-L6020R |
| XND-9082RV/RF |
| XND-8083RV, XNV-8093RV |
| XND-8082RV/RF |
| XND-8081RF/8081RV |
| XND-8081FZ/8081VZ |
| XND-8080RV |
| XND-8080R |
| XND-8020R/8030R/8040R |
| XND-8020F |
| XND-6085/6085V |
| XND-6081VZ/6081FZ |
| XND-6081RV/6081RF/6081V/6081F |
| XND-6081REV/8081REV |
| XND-6080R/6080RV |
| XND-6080/6080V |
| XND-6020R |
| XND-6011F |
| XND-6010 |
| XNB-9002 |
| XNB-8002 |
| XNB-8000 |
| XNB-6005 |
| XNB-6002 |
| XNB-6001 |
| XNB-6000 |
T-Series |
| TNO-7180R |
| TNF-9010 |
Q-Series |
| QNV-8010R/8020R/8030R/8080R |
| QNV-6082R |
| QNV-6072R |
| QNV-6012R/6022R/6032R |
| QNP-6320R |
| QNP-6320H |
| QNP-6230RH |
| QNP-6230/6230H |
| QNO-8010R/8020R/8030R/8080R |
| QNO-6082R |
| QNO-6072R |
| QNO-6012R/6022R/6032R |
| QNF-9010 |
| QNF-8010 |
| QNE-8011R/8021R |
| QND-8011/8021 |
| QND-8010R/8020R/8030R/8080R |
| QND-6082R |
| QND-6072R |
| QND-6012R/6022R/6032R |
| QND-6011/6021 |
P-Series |
| PND-A6081RF/A6081RV,PNO-A6081R, PNV-A6081R, PNB-A6001 |
Wisenet Q Series (port forwarding required)
QND-7010R
QND-7020R
QND-7030R
QNO-7010R
QNO-7020R
QNO-7030R
QNV-7010R
QNV-7020R
QNV-7030R
QND-7080R
QNO-7080R
QNV-7080R
Note: We recommend using the port forwarding solution instead of using plug and play (turn off Open SDK when adding a camera).
Wisenet III (Discontinued)
SNB-6004
SNB-6003
SND-6084
SND-6083
SND-6084R
SNV-6084R
SNO-6084R
SNB-6010
SNV-6013
SNB-5004
SNB-5003
SND-5084
SND-5083
SNV-5084
SNZ-6320
IMPORTANT: Only X-series only cameras support Edge Storage solution with plug and play.
